Hydraulic Vibroflot with 220 kN Centrifugal Force 20 m³/min Air Compressor and 500-800 mm Diameter for High Compaction Efficiency

Hydraulic Vibroflot with 220 kN Centrifugal Force 20 m³/min Air Compressor and 500-800 mm Diameter for High Compaction Efficiency

220 kN Centrifugal Force Hydraulic Vibroflot

20 m³/min Air Compressor Vibroflotation Equipment

500-800 mm Diameter Hydraulic Vibroflotation Machine

Τόπος καταγωγής:

ΚΙΝΑ

Μάρκα:

BVEM

Πιστοποίηση:

CE、ISO 9001:2000、ISO 9001:2008

Αριθμό μοντέλου:

BJVH-350-150

Μας ελάτε σε επαφή με

Ζητήστε ένα απόσπασμα
Λεπτομέρειες προϊόντων
Δύναμη Δονητή:
150kW
Μέγιστο βάθος:
Διαφέρει ανάλογα με το μοντέλο
Φυγόκεντρη Δύναμη:
220 kN
Αεροσυμπιεστής:
20 M3/Min
Διάμετρος Vibroflot:
500-800 χιλ.
Πακέτο δύναμης:
176 KW
Εξωτερική διάμετρο:
350 mm
Εγγύηση:
Είτε 1 έτος είτε 2000 ώρες, όποιο συμβεί πρώτο
Όροι πληρωμής & ναυτιλίας
Ποσότητα παραγγελίας min
1
Τιμή
35000 $
Συσκευασία λεπτομέρειες
ξύλινη θήκη
Χρόνος παράδοσης
30-45 ημέρες
Όροι πληρωμής
L/C,T/T
Δυνατότητα προσφοράς
600 σετ/Έτος
ΣΧΕΤΙΚΑ ΠΡΟΪΟΝΤΑ
Μας ελάτε σε επαφή με
86-010-69592173
Επαφή τώρα
Περιγραφή προϊόντων
Hydraulic Vibroflot with 150Kw Power and High Compaction Efficiency for Soil Improvement ISO 9001 Certified
With over 50 years of dedication to the vibroflotation industry, BVEM has focused on R&D and investment in vibroflotation products. Our BJVH-350-150 hydraulic vibroflot represents the culmination of technical expertise and innovation, delivering high-efficiency, stable performance for demanding vibroflotation projects.
Working Principle

This hydraulic vibroflot efficiently converts hydraulic energy into mechanical energy (rotational motion) through a hydraulic motor, driving the eccentric block to generate strong horizontal excitation force.

  • Large output torque for demanding applications
  • Wide speed regulation range with stepless control
  • Excellent impact load resistance
  • Stable power output for consistent performance
Key Features
  • 0-2900rpm stepless speed regulation: Flexible operation matching various construction requirements and soil conditions
  • Wide stratum compatibility: Optimized design provides strong penetration in both soft soil and gravel-containing strata
  • Continuous high-power output: Ensures stable operation and improved project efficiency
  • Water-cooled motor not required: Enables dry method environmental protection construction
  • High adaptability: Compatible with various equipment including pump stations, rotary drilling rigs, excavators, and pile frames
Certifications
CE Certified ISO 9001 Made in China
Applications

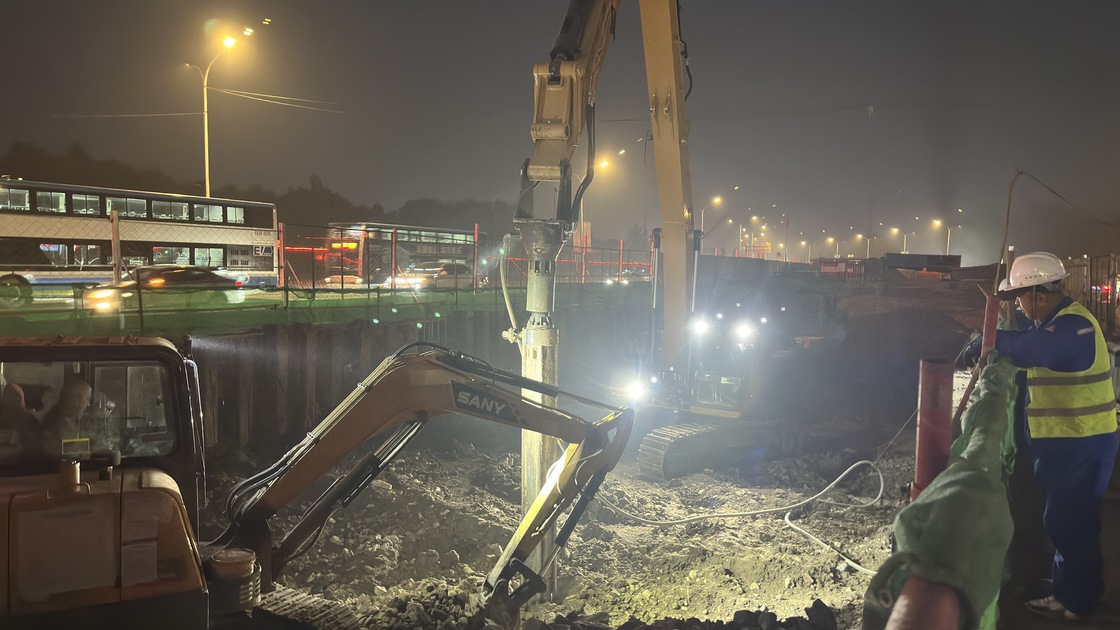

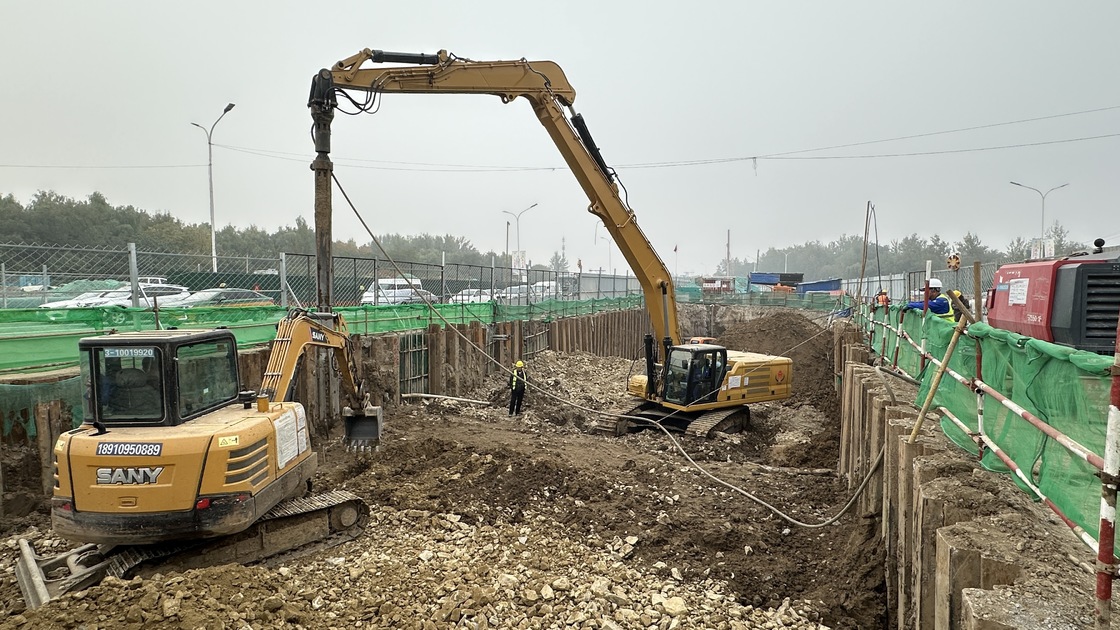

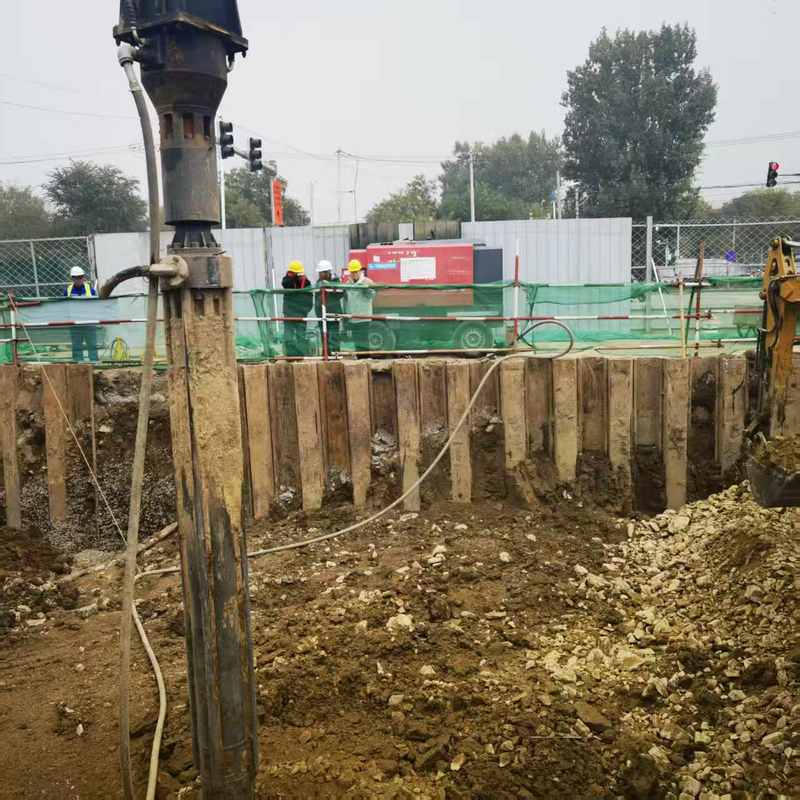

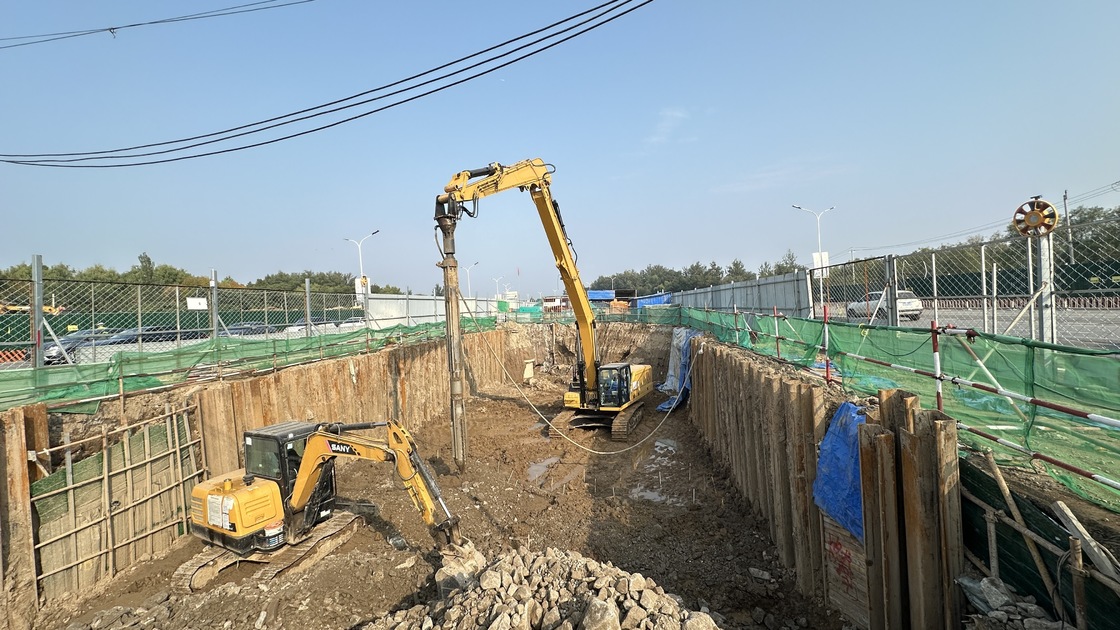

The BVEM Hydraulic Vibroflot (Model: BJVH-350-150) is designed for soil improvement across multiple construction scenarios:

  • Foundation Construction: Compacts soil to ensure stable building foundations
  • Road and Highway Projects: Enhances soil strength and reduces settling for durable infrastructure
  • Retaining Wall Installation: Improves soil stability and prevents erosion
Technical Evolution

BVEM has pioneered advancements in vibroflot technology, including:

  • Transition from electric to hydraulic driving systems
  • Development of both orifice filling and bottom discharge models
  • Expansion of mounting scenarios for diverse construction needs

This equipment provides contractors and engineers with a reliable, high-performance solution for soil improvement projects, combining quality construction with operational efficiency.
